Technical info

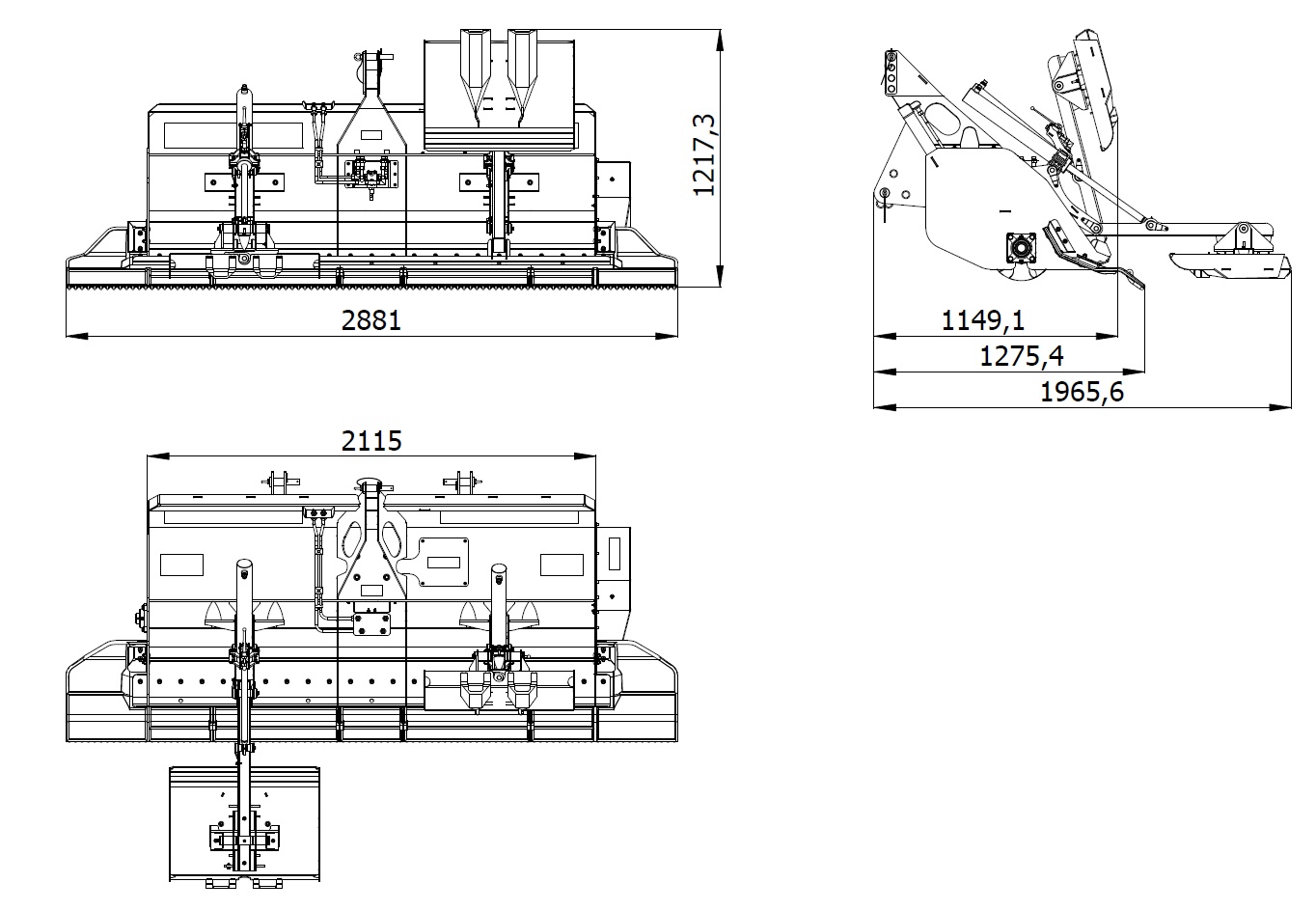

Basic technical info about the product Snow-Liner
| Height | 1217,5 mm |
| Length | 1969,5 mm |
| Width | 2880 mm |
| Weight | 670 kg |
Required technical info about draught vehicle
| Hanging device of a tractor |
KAT II (KAT I and KAT III also possible) |
| Output | min.50 kW |
| Driveshaft | 13/8” 6 grooves |
| Revolutions of driveshaft | 540 revs/min |
| Hydraulics on the tractor | two simultaneously affecting controlling devices |
Attachment to a draught vehicle
Snow-Liner is designed for an attachment to a three-points hanging device of category KAT II. Because of the special designed pivots, the Snow-Liner can be also attached to a three-points hanging device of category KAT I or KAT III. The working width of the machine Snow-Liner is 2881 mm. The weight of fully equipped machine Snow-Liner is 670 kg. For quality transportation of snow surface, a draught unit, a tractor with the output 50 kW and more, is necessary. Required revolutions of back driveshaft – 540 revs/min.
When working with the machine Snow-Liner, it is necessary to set the hanging device in floating position. A working angle of the machine can be changed by the upper adjustable point (hydraulic is also possible). By this way, you can optimize cutting through the layers of snow.
